Speedskatingarena Geisingen
Die arena geisingen ist ein Bauvorhaben in privater Trägerschaft. Über drei Jahre verfolgte Familie Uhrig aus Geisingen die Idee, eine Inlinebahn in Geisingen zu bauen. Im Laufe der Planungsphase entwickelte sich aus der ursprünglichen Absicht "eine Bahn" zu bauen, dann die arena geisingen, die in ihrer heutigen Konzeption nicht nur für Deutschland, sondern europaweit einzigartig sein dürfte. Bei der arena geisingen handelt es sich um ein Landschaftsbauwerk, welches durch aufwendige Modellierungen des gesamten Geländes topografisch perfekt in die bestehende Donau-Auenlandschaft eingepasst wurde. Durch Erdbewegungen von 50.000 m3 entstanden die Arena-Ränge, die ovale Rennbahn mit den Kurvenüberhöhungen und das Innenfeld. Diese Bauweise ist auch dadurch begründet, dass sich das Baugelände im Hochwassergebiet befindet. Das Familienunternehmen Uhrig GmbH Geisingen führte die gesamten Arbeiten an der arena geisingen aus, wie Erdbauarbeiten, Bodenverbesserung, Gründungsarbeiten, Erstellung der Konzeption zur Hochwassersicherheit und Auftriebssicherheit, Rammung der Stützen für das Dach, kompletter Stahlbau für die Unterkonstruktion der Tribünen und Einbau derselben, Einbau der Trag- und Deckschicht, Erstellung der gesamten Infrastruktur (Kanalisation, Entwässerung und Hausanschlüsse).
Die arena geisingen wurde auf der Planungsgrundlage des Architekturbüros SYRA_SCHOYERER ARCHITEKTEN BDA, aus Mainz realisiert (Entwurfsplanung und Leitdetails). Die weiterführende Planung und Bauabwicklung übernahm das Büro Centraplan Architekten Planungsgesellschaft mbH aus Kirchzarten.

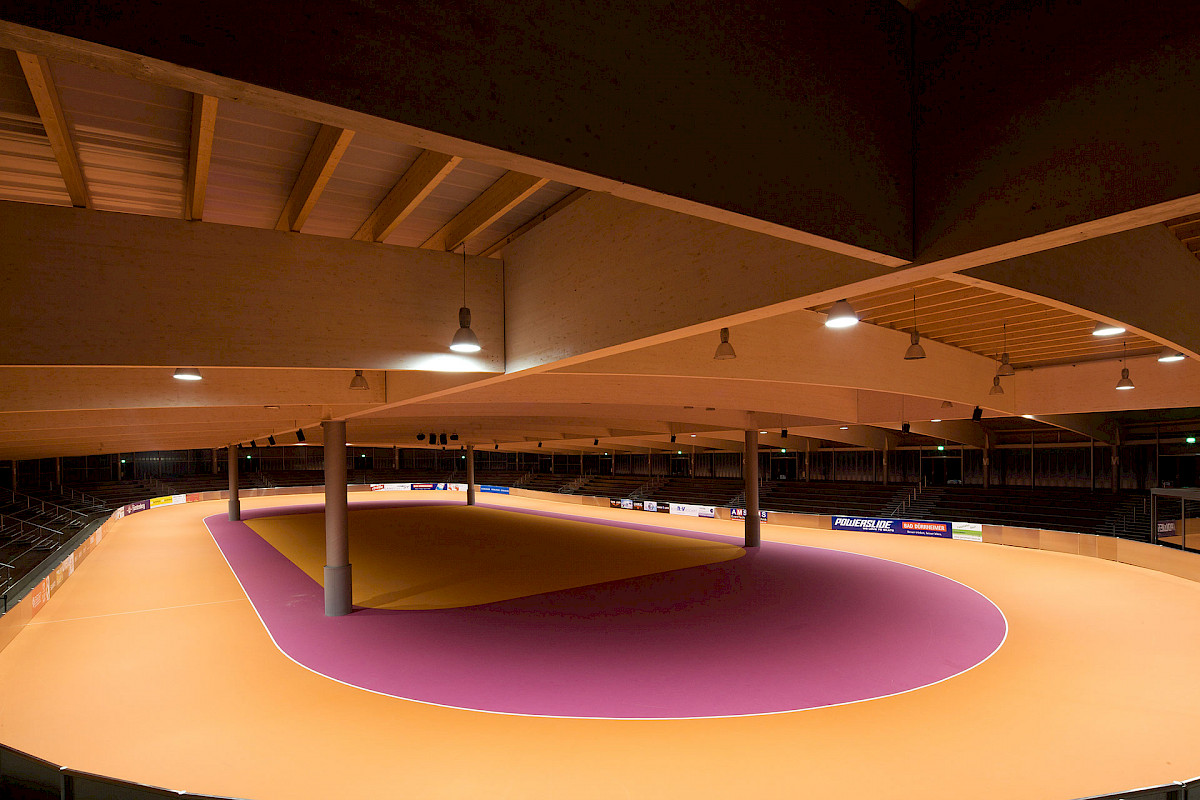

Die Lichtplanung für die arena geisingen und der Straßenkurs wurden vom Büro generation licht aus Hemmenhofen entwickelt. Auf Basis umfangreicher Berechnungen der Tages- und Kunstlichtverhältnisse wurde bei jeder Tages- und Nachtzeit eine gleichmäßige Ausleuchtung der Bahn erzielt.

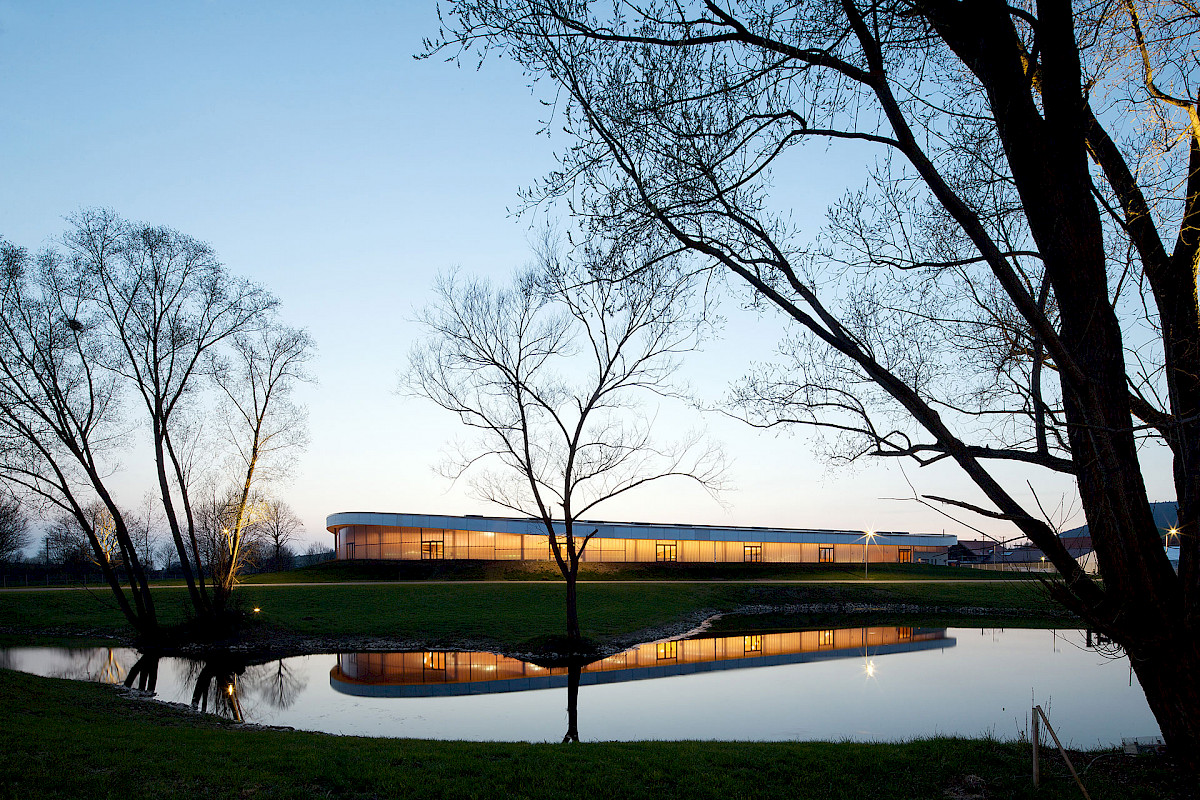

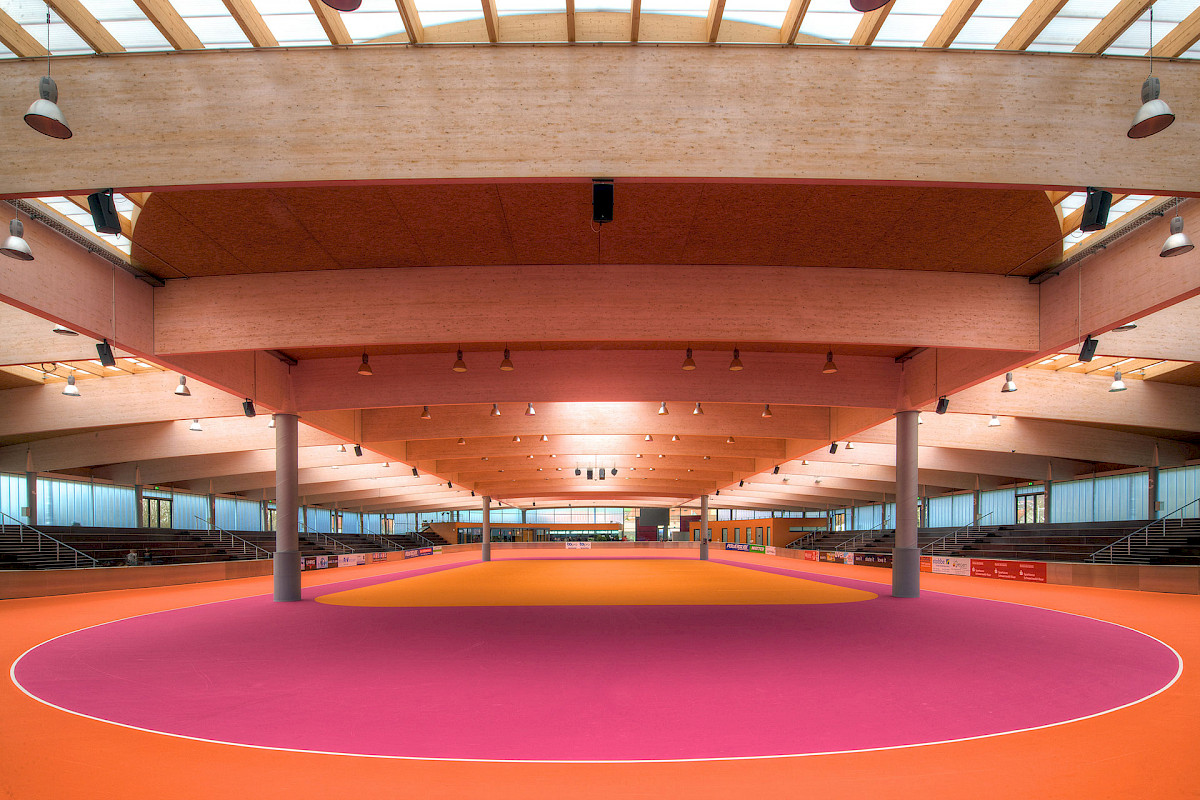

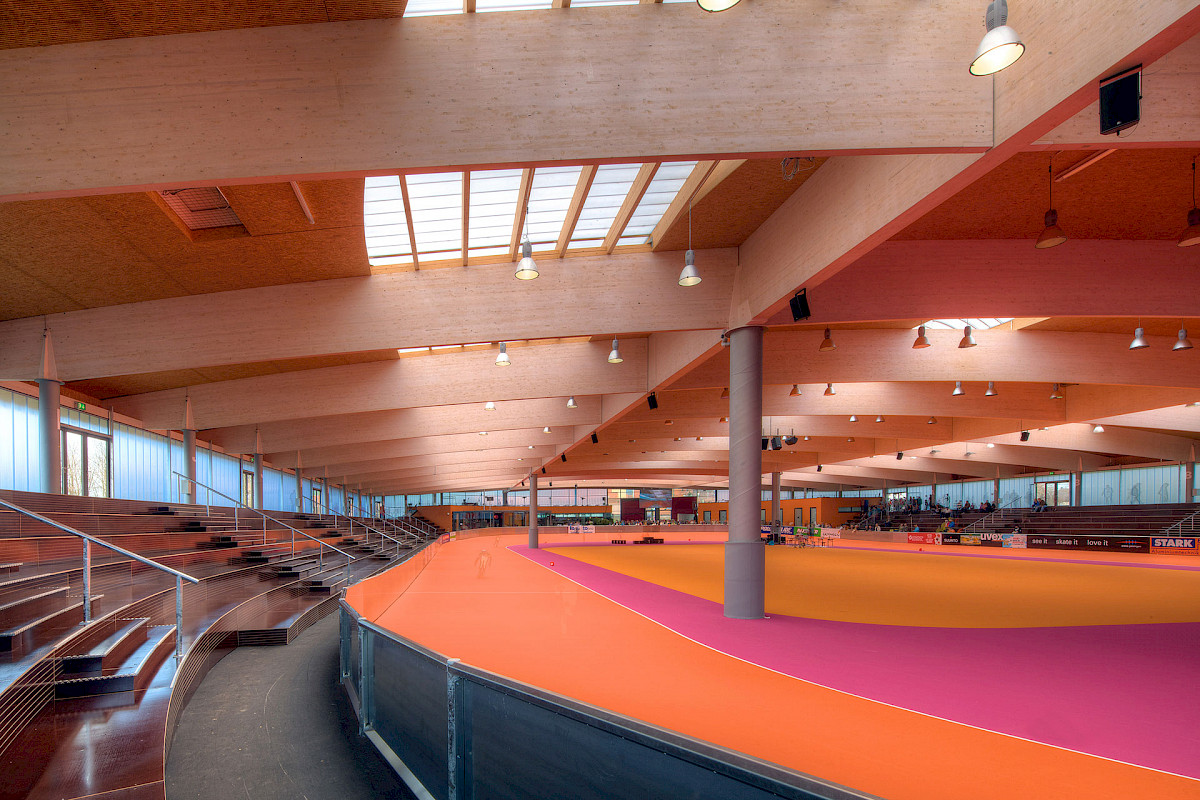

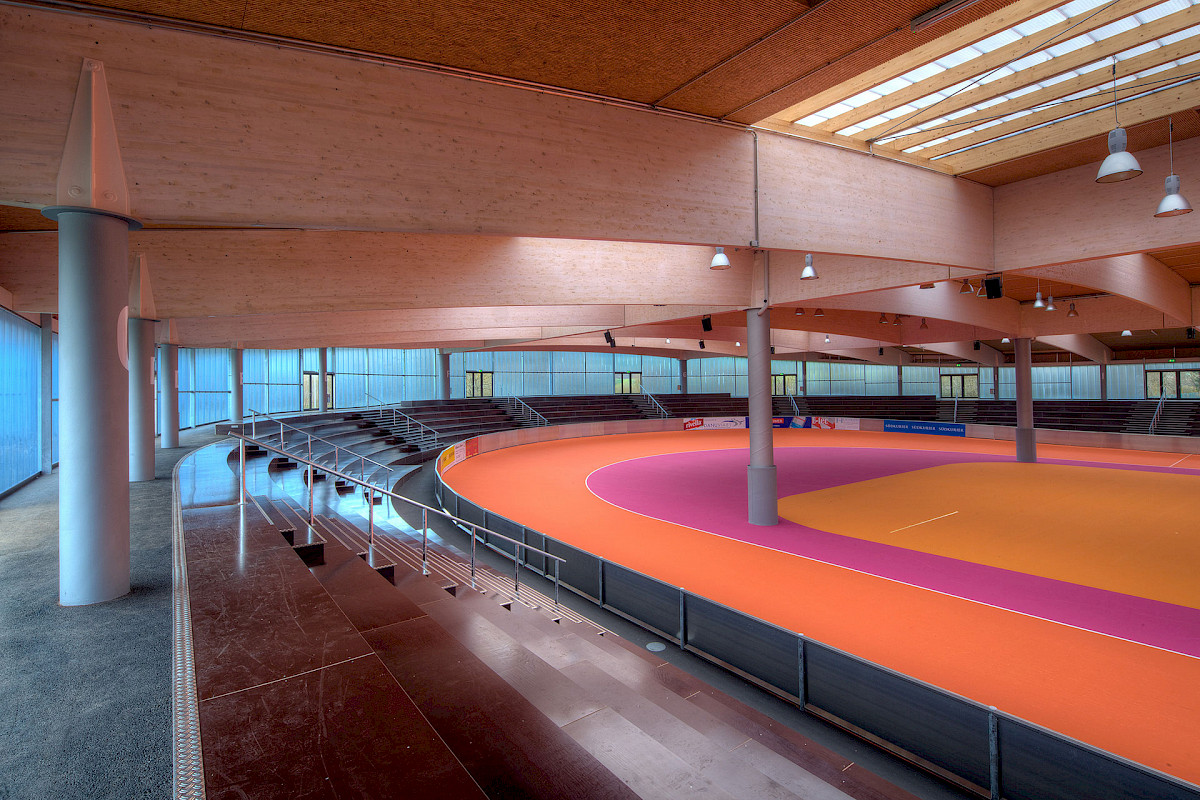

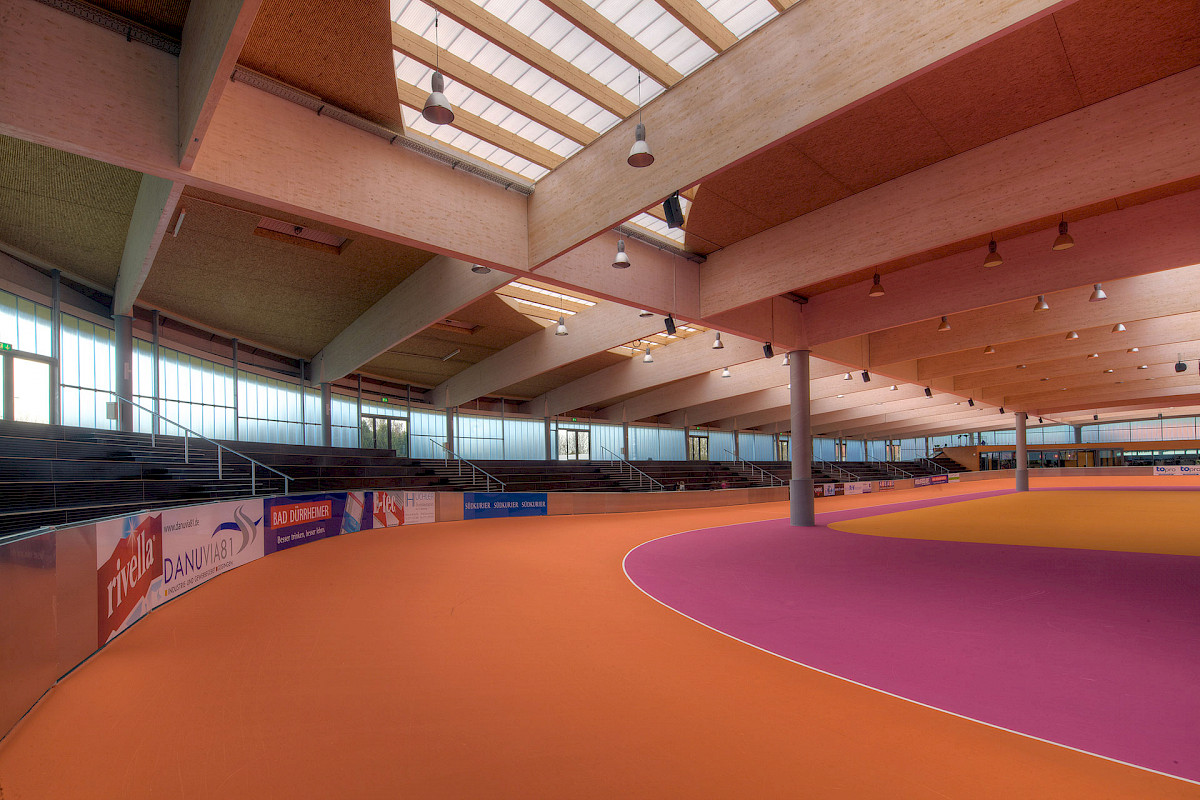

Wie ein sanft gelandetes Ufo liegt die Arena in der Landschaft Geisingens. Die transluzente Fassade aus Doppelstegplatten liegt fast schwerelos auf der ringwallartigen Rangaufschüttung auf. Das flach gekrümmte Dach mit der Holzleimbinderkonstruktion überdeckt den kompletten Innenraum. Die Designerin Monika Heiss setzte saftige Orangetöne und ein strahlendes Magenta für die Trainingsbahnen ein. Durch das Zusammenspiel von Farbe und Licht entsteht ein motivierendes Klima und lässt das Skaten auch bei Schlechtwetter, am Abend oder an nebeligen Tagen zum Vergnügen werden. Für Bistro, Skateshop und die Außenhaut des Serviceblocks wurde echtes Ocker Naturpigment verwendet.
Interessant ist, dass durch die gewählte Bauweise der gesamte Energiebedarf für den Hallenraum alleine über abstrahlende Erdwärme und über den Sonnenenergieeintrag durch die transluzenten Dach- und Fassaden gedeckt wird. Im vergangenen Winter fiel die Temperatur in der Halle nie unter 8°C, meist lag sie über 10°C und das ohne jeden Energieaufwand! Lediglich der Shop, das Bistro und die Umkleiden/Sanitärräume werden beheizt. Die Betriebskosten verhalten sich gegenüber vergleichbaren Hallen sehr gering

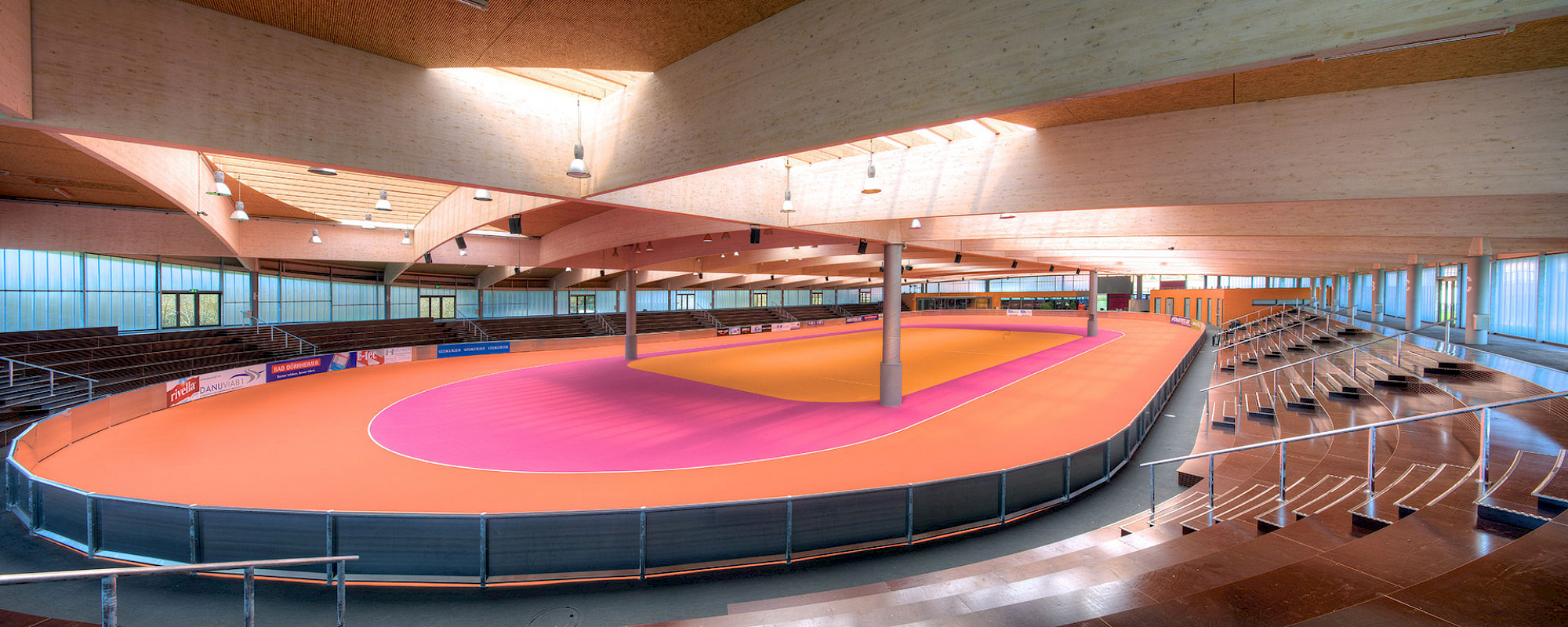

Alle Bereiche wie Shop, Bistro, Umkleiden/Duschen, der oberste Rang (für Rollstuhlfahrer geeignete Plätze somit über 25% der Gesamtplatzanzahl) , das komplette Innenfeld, die Rennbahn (Rollstuhlrennen möglich) und die gesamten Außenanlagen (inkl. Parkplätze) sind barrierefrei erreichbar. Von der Fachwelt wird die Rennbahn als eine der schnellsten Bahnen weltweit anerkannt und die Trainingsbedingungen gelobt. Die Gesamtanlage der arena geisingen besteht aus einem Straßenkurs und der eigentlichen arena geisingen und erstreckt sich über ein Gelände von 35.000 m2.
Technische Daten arena geisingen:
- 7500m2 Dachfläche
- 2000m2 Oberlichter
- Infield ca. 2500m2
- Innenfläche gesamt 3870 m2
- 3000 Zuschauerplätze (davon 2500 Sitzplätze und 500 Stehplätze)
- Bistro 80 Sitzplätze
- grosszügiger VIP- Bereich für Veranstaltungen
- Gesamtfläche arena geisingen Gelände 35.000m2

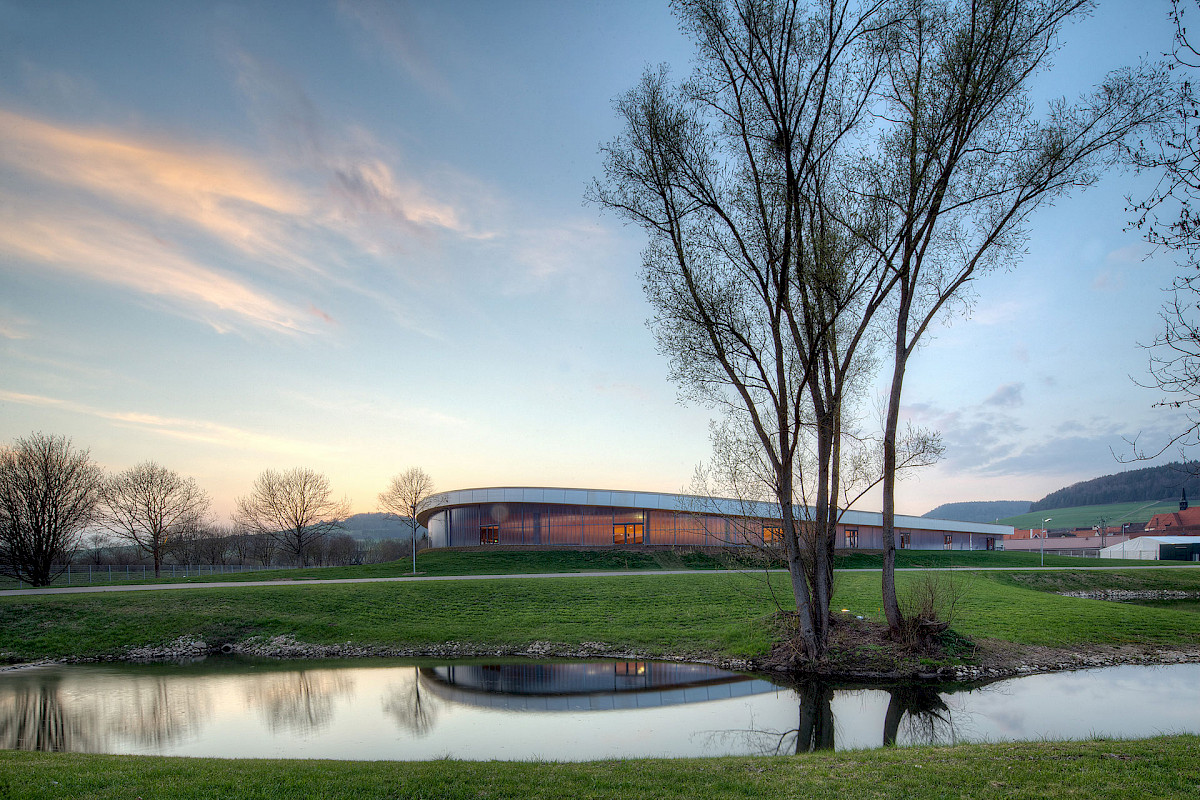

- schönes Außengelände mit einem kleinen Weiher
The arena Geisingen is a private sponsorship project. Over a period of three years the Family Uhrig from Geisingen pursued the idea of building an Inline track in Geisingen. During the planning phase the concept developed from the original intention of building only ‘a track’, which was then developed as a concept into the to the arena Geisingen you see today which is unique not only in Germany but also Europe wide. The arena Geisingen is, situated on a floodplane of the river Donauwhich which entailed complex remodelling of the existing landscape. In total 50,000 m³ of earth was modulated to form the arena tribunes, the oval racetrack with the banked corners and the infield area . Because of the close proximity to the Donau River the arena Geisingen is constructed in such a way that when the river floods there is no damage to the arena. The company Uhrig GmbH Geisingen was responsible for the entire construction of the arena, from the earthworks, groundwork, laying the foundations, creating the concept to prevent flooding, building the support for the roof, steel framing , installation of the substructure supporting the tribunes, construction of the roof, and building the complete infrastructure (sewerage system, drainage system).
The arena Geisingen was designed (preliminary design and details design ) by the architectural firm SYRA_SCHOYERER ARCHITEKTEN BDA, from Mainz. Site supervision was taken over by the company Centraplan Architeken Planungsgesellschaft GmbH from Kirchzarten.
The light plan for the arena Geisingen and the traffic planning was developed by the company Generation Licht from Hemmenhofen. The areans lighting enables facilitates skating 24hour a day.

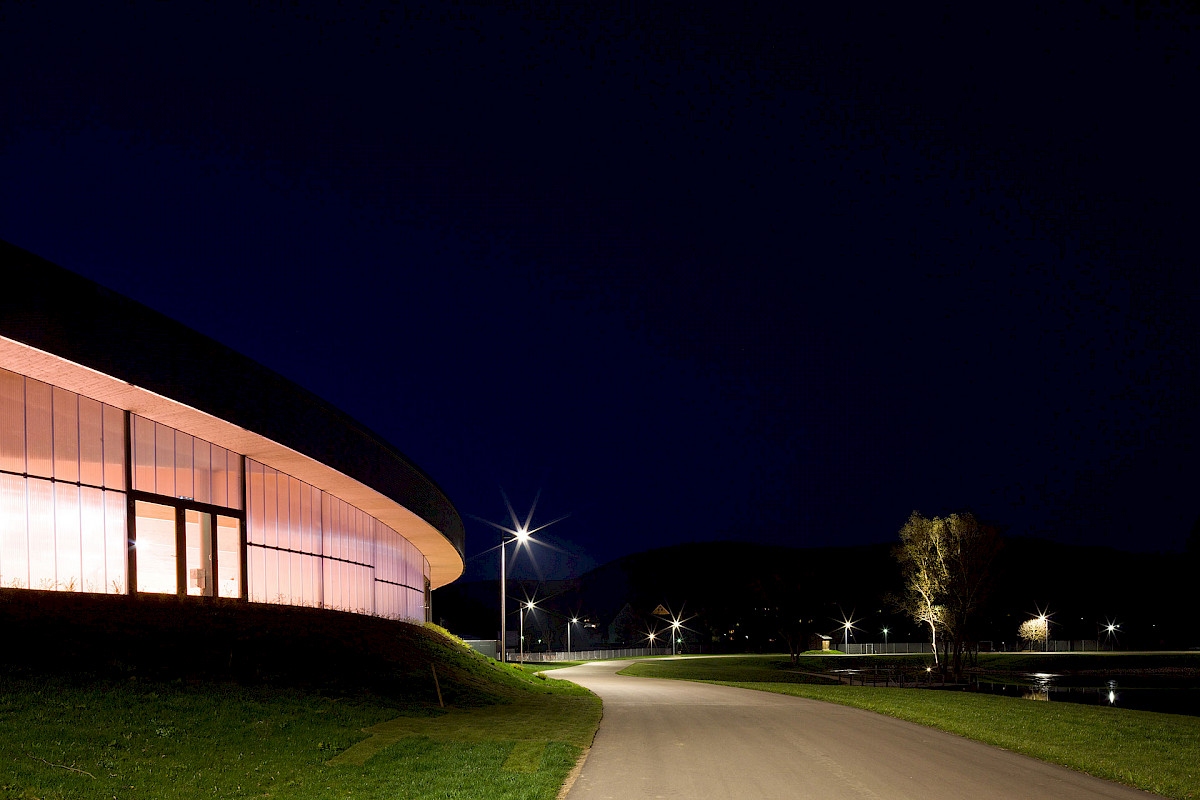

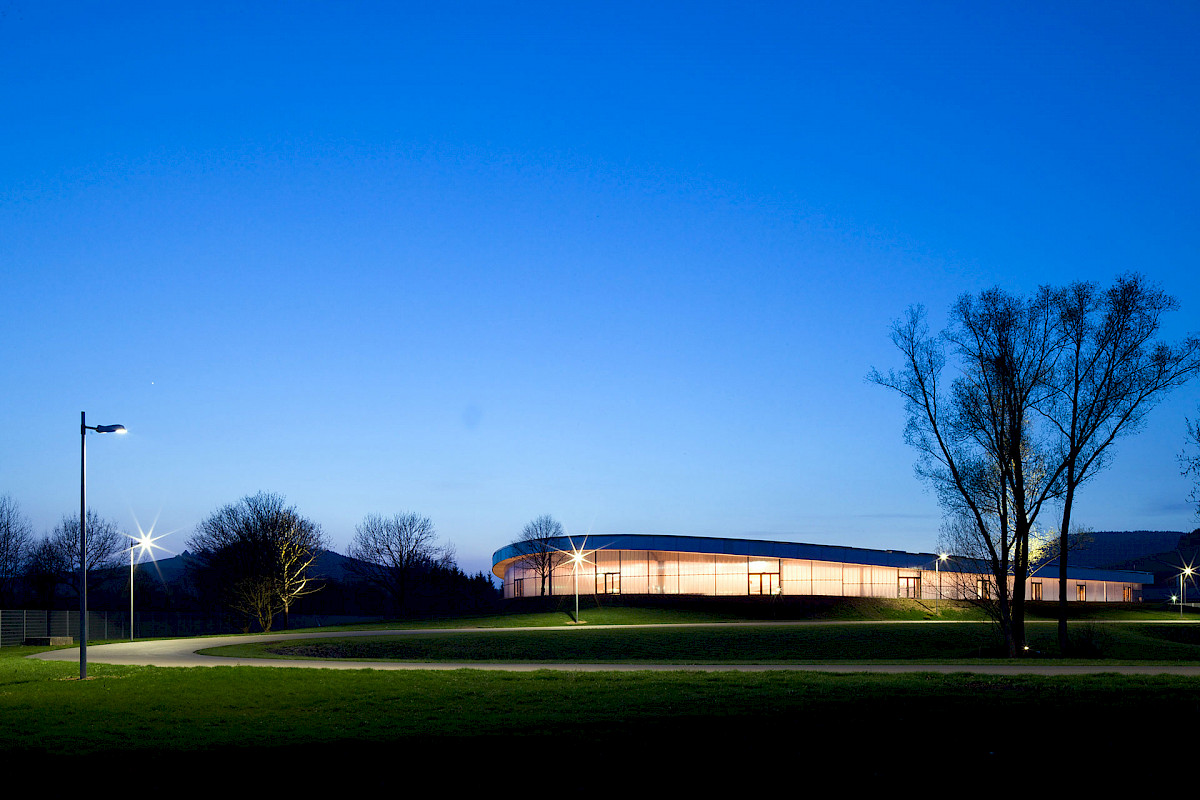

By night the arena Geisingen glows like a UFO against the Geisingen countryside. The translucent walls are almost weightless and surround the arena. The flat roof constructed with wood and the same weightless material as the sidewalls covers the entire arena. The designer Monika Heiss set the sensational orange tone for the track and the radiant Magenta for the training track. These brilliant colours and the lighting concept create an exciting motivational atmosphere. It does not matter if the weather is bad, if it is a foggy day, or night time, the atmosphere in the arena is always enjoyable. For the Bistro, Skateshop and the Service areas, the natural colour ochre was chosen.
Due preliminary design decisions and the careful selection of materials used in constructing the arena the energy demand is very low. The arena uses the warmth generated from the ground and the sun to heat the hall space. The translucent roof and walls trap the heat inside the arena which means in Winter the temperature inside the arena does not fall below 8°C, averaging 10°C this is achieved without any energy expenditure! Only the Skateshop, the Bistro, and the Changing rooms are heated. The operating costs by comparison to other arenas are extreamly very low.
All areas including the Skateshop, Bistro, Changing rooms and shower areas and the top of the tribune areas (we have over 25% of the total area of the tribune is appropriate for wheelchairs) have easy access for wheelchairs. The complete infield, the race track (wheelchair allowed) and the entire outdoor facilities (including the parking areas) are barrier free and also have easy wheelchair access. Both amateur and professional athletes, it has been said that the arena Geisingen is the fastest track in the world and it is resolutely recognised as the best training facility worldwide. The complete arena Geisingen including the street course extends over an area of 35,000m²
Technical aspects of the arena geisingen:
- 7500m² Roof
- 2000m² Skylights
- Infield approx. 2500m²
- Surface area of the track 3870m²
- 3000 Spectator seats (2500 seating places and 500 standing places)
- Bistro 80 seating places
- Large VIP events area
- Total area of the arena geisingen 35,000m²
- Beautiful outside area with a small pond
